Stress concentration in plate with a hole.

Problem Statement

Consider a Rectangular Plate with Circular hole for the below mentioned dimensions. Perform FE Analysis for the axial load of 2000 N and calculate : 

  • Maximum Deformation
  • Maximum Strain 
  • Maximum Stress

Identify the Stress critical region and correlate the results with analytical calculation.

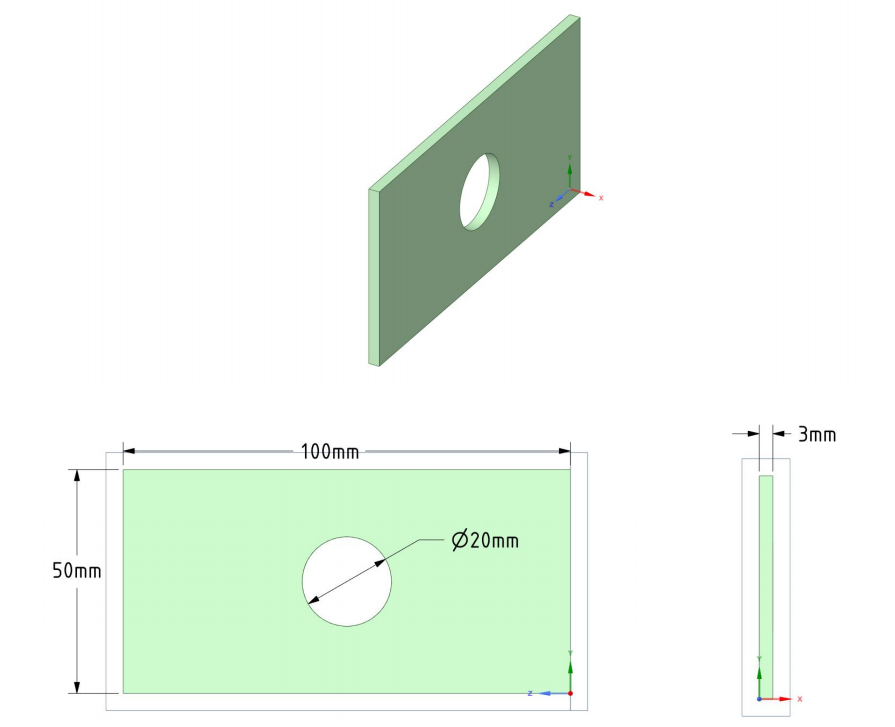

Geometry in SpaceClaim

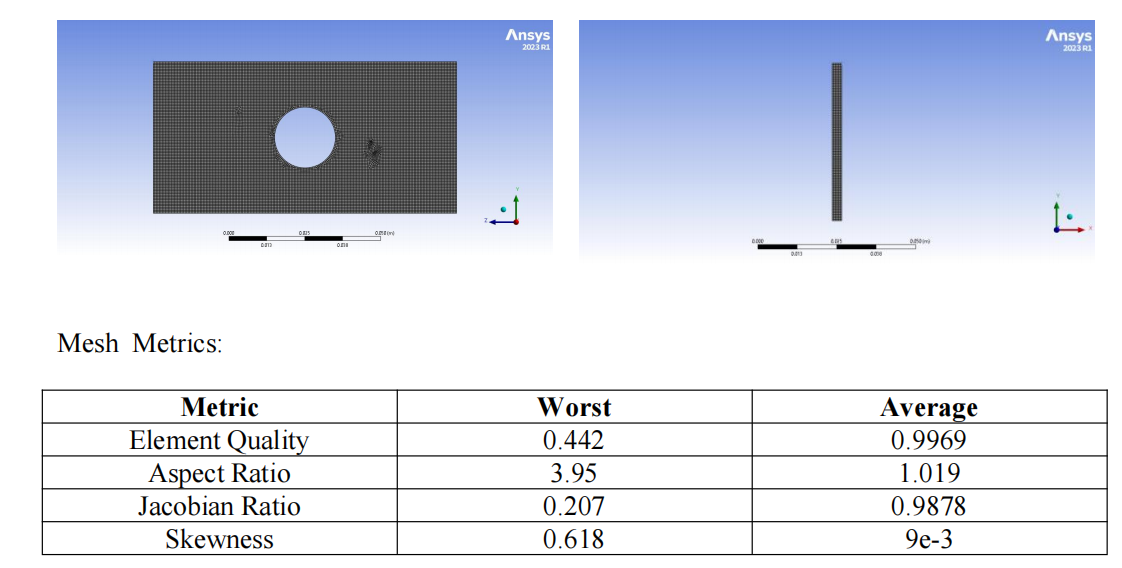

Generated Mesh

Total Elements: 113376
Total Nodes: 517312

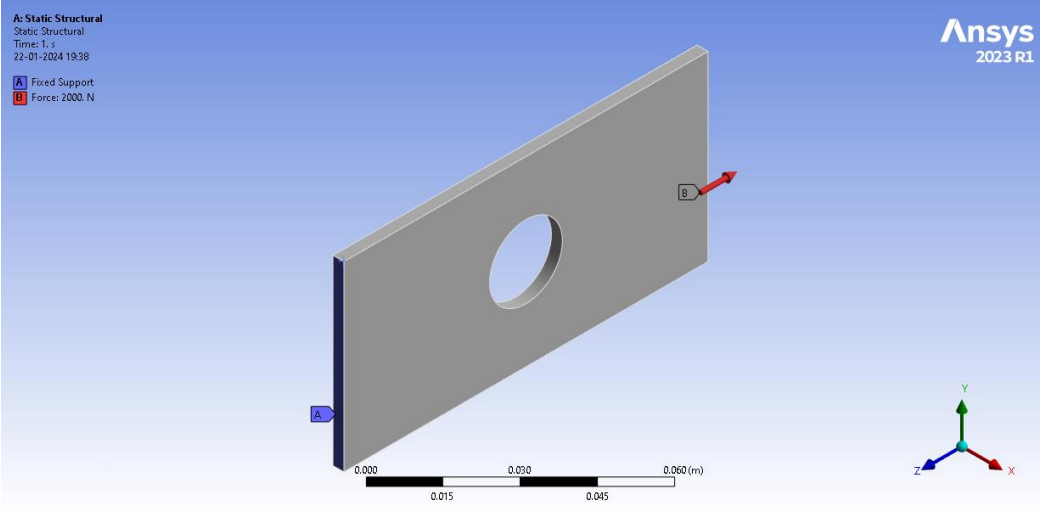

Boundary Conditions

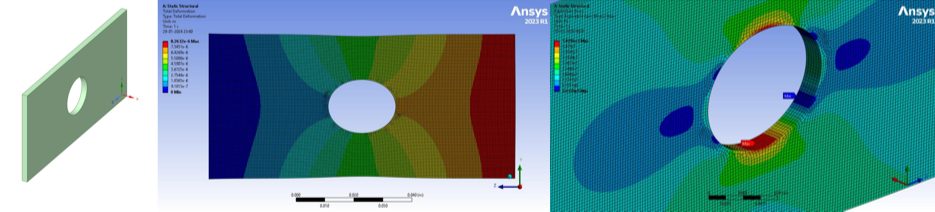

Results

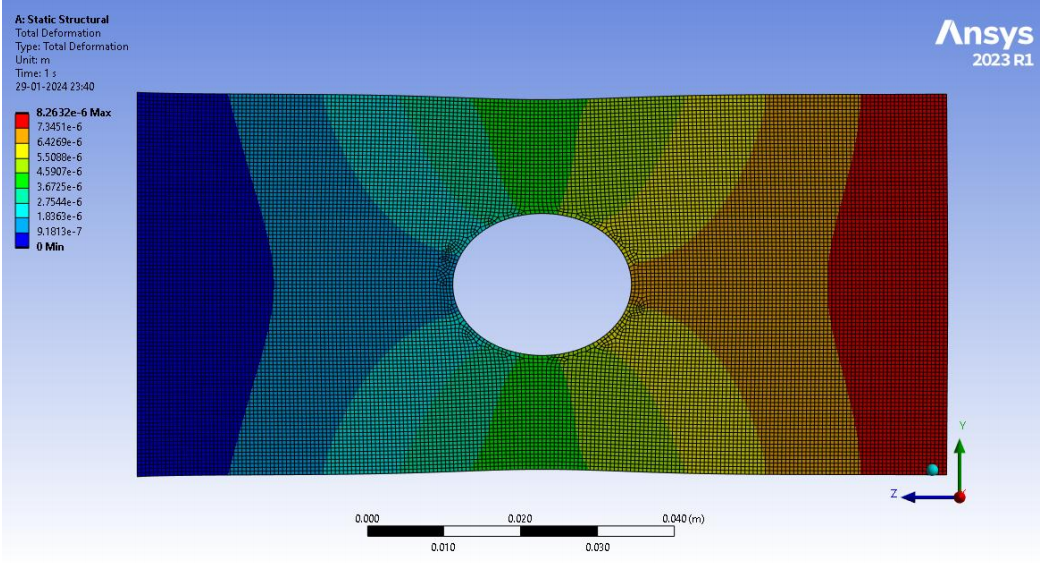

Maximum Deformation = 8.2632e-006 m = 0.0082632 mm

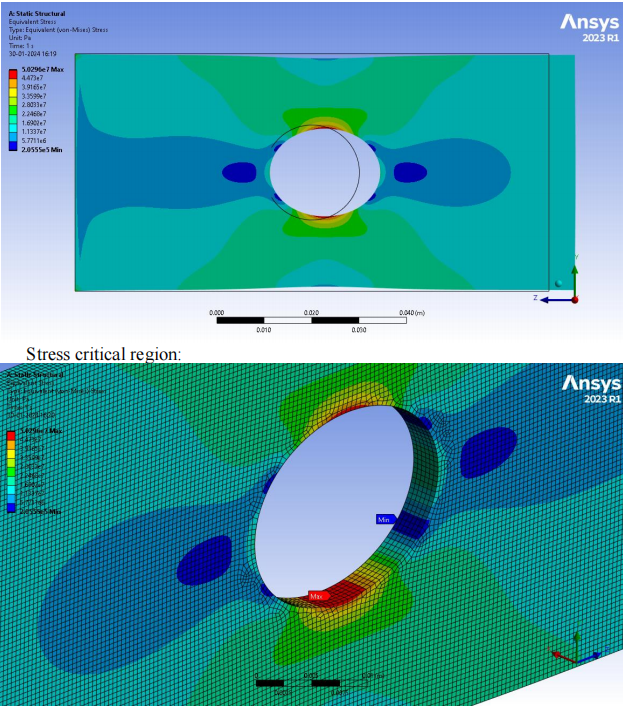

Stress
 Maximum Stress: 5.0378e+007 Pa = 50.296 MPa
Minimum Stress: 1.2463e+005 Pa = 0.205 MPa
Average Stress: 1.4597e+007 Pa = 14.60 MP

Analytically
Maximum Stress =  48.844 MPa
